Product Description:
Explosion-proof Camera. Certified for hazardous areas, ensures safe and reliable, high-definition surveillance in volatile environments.
Product Parameters
Sensor Type
|
Explosion-proof mark
|
Ex db IIC T6 Gb/Ex tb IIC T80℃ Db
|
|
Protection Level
|
IP68
|
|
Image Sensor
|
1/2.7″ Progressive Scan CMOS
|
|
Effective Pixel
|
5MP
|
|
Focal Length
|
4.5-148.5mm, 33x Optical Zoom
|
|
Zoom Mode
|
Motorized zoom, automatic focus
|
|
Iris Diaphragm
|
Automatic/Manual, aperture range: F1.5(W)~F4.0 (T)
|
|
Shutter
|
Automatic/Manual, Shutter range: 1~1/100,000s
|
|
Min. Illumination
|
Color: 0.003Lux@(F.1.5, AGC ON, color); 0.001Lux@(F.1., AGC ON, Black and white); 0Lux (IR lamp on)
|
|
Infrared Distance
|
≥100 meter
|
|
Day/Night Switch
|
Automatic infrared filter switch
|
|
Signal-to-Noise Ratio
|
>56 dB
|
|
Wide Dynamic Range
|
120dB
|
|
3D Noise Reduction
|
Support
|
|
White Balance
|
Automatic/manual/tracking/outdoor/indoor/outdoor automatic/sodium lamp
automatic/sodium lamp |
|
Eletronic Anti-shake
|
Support
|
|
Fog Penetration
|
Adaptive fog penetration
|
|
White Balance
|
Automatic/Manual/Tracking/Outdoor/Indoor/Outdoor Automatic/Sodium Lamp
|
|
Backlight Compensation
|
Support
|
|
Glare Suppression
|
Support
|
|
Encoding Format
|
2592×1944@25fps, 2592×1944@20fps, 2688×1520@30fps, 2688×1520@25fps, 2560×1440@30fps, 2560×1440@25fps, 1920×1080@30fps,
1920×1080@25fps |
|
Main Stream
|
2592×1944, 2688×1520, 2560×1440, 1920×1080, 1280×720, 720×576 (D1), 640×360
|
|
Sub Stream
|
1920×1080, 1280×720, 720×576 (D1), 640×360
|
|
Third Stream
|
720×576 (D1), 640×360, 704×288 (2CIF), 352×288 (CIF)
|
|
Video Bitrate
|
128Kbps~16Mbps
|
|
Video Compression
|
H.265, H.264, MJPEG
|
|
Audio Compression
|
G.711u, G.711A, AAC-LC
|
|
Audio Sampling Rate
|
G.711u, G.711A: 8KHz; AAC-LC: 8KHz, 16KHz, 48KHz
|
|
Privacy Mask
|
Black style: single scene can dispaly up to 4
|
|
Image Capture
|
Supports scheduled snapshot, periodic snapshot, cruise preset snapshot
|
|
Front-end Storage
|
Micro SD storage up to 256GB
|
|
Back-end Storage
|
Dual iSCSI data block storage
|
|
Perimeter Defense
|
Boundary detection, area invasion detection, area entry/exit detection
|
|
Common Events
|
Motion detection, occlusion detection, sound detection, alarm input/output
|
|
Network Protocol
|
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP
|
|
Compatibility
|
ONVIF Profile G, Profile T, Profile S, GB/T28181, IMOS, GA/T 1400, API
|
|
Browser
|
IE7 or above versions, Google, Firefox, Apple etc.
|
|
Safe Mode
|
Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist)
|
|
User Management
|
Multi-level user rights management
|
|
Rotation Range
|
Horizontal: 360° continuous rotation; Vertical: ±90°
|
|
Rotation Speed
|
Horizontal: 0.1°-40°/s; Vertical: 0.1°-40°/s
|
|
Preset Point
|
255
|
|
Pre-position Accuracy
|
±0.1°
|
|
Automatic Cruise
|
Four bars, each with 16 preset points that can be added
|
|
Watch Function
|
Support
|
|
Double the Speed Limit
|
Support
|
|
Power Memory
|
Support
|
|
Audio Interface
|
1 In and 1 Out
|
|
Alarm Interface
|
1 In and 1 Out
|
|
Network Interface
|
Built-in RJ45 network port, support 10M/100M network data
|
|
Operating Temperature
|
-40℃~+60℃
|
|
Power Supply
|
AC85V~260V/DC24V 3A (optional)
|
|
Material
|
304/316 Stainless Steel
|
|
Inlet
|
1 G3/4″ inlet
|
|
Installation
|
Methods optional based on application
|
|
Weight
|
≤29kg
|

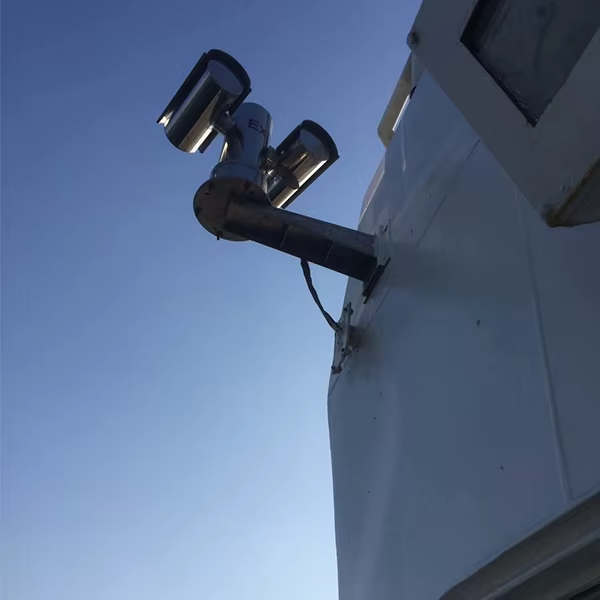

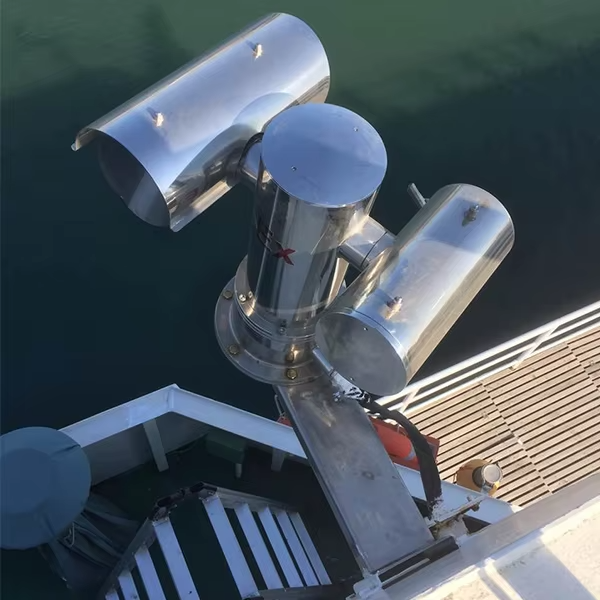

Product Scenario：
Our accessories advantages - Why choose us
- 1 Our cameras boast true 4MP+4MP pixel count, utilizing epistar light panels and Lotus LEDs. Night vision is improved by 5–6× compared to competing products.
- 2 High-resolution sensor + proprietary image processing chip deliver clear, colorful images even in low-light or near-dark conditions, capturing about 40% more detail than standard products.
- 3 High-power Feiyang light panels (used by Hikvision & Dahua; supplier with 20+ years) offer longer lifespan and more stable brightness.
- 4 12W large-crystal solar panels ensure charging in low light for uninterrupted power. Many competitors use semi-plastic crystals that struggle in rainy weather.
- 5 We use brand-new batteries (not refurbished) for safety and stability: six 12,000 mAh cells vs others’ four 8,000 mAh. A critical component with only a small cost difference.
- 6 High-quality ABS housing ensures a 5–8 year lifespan and minimizes damage from weathering.
Over 12 Years of Manufacturing Experience
HIKIWIFI has over a decade of experience in the security camera industry, providing consistent quality and performance to customers in over 50 countries.
OEM/ODM Customization Experts
We specialize in flexible OEM and ODM solutions to meet your market needs—from branding and packaging to software integration and collagen customization.
3,000 Square Meter Self-Owned Factory
Our modern production facilities ensure stable production, fast delivery times, and strict quality control for every order.
Ultimate Service Experience
Fast Delivery and Sample Support We offer 36-hour fast sampling and 72-hour bulk delivery for popular models, helping you gain a market advantage over the competition.
Dedicated Service Team
Over 100 employees, including over 30 QA and after-sales engineers, ensure 24/7 support, technical guidance, and responsive communication throughout your relationship.
