Product Description:

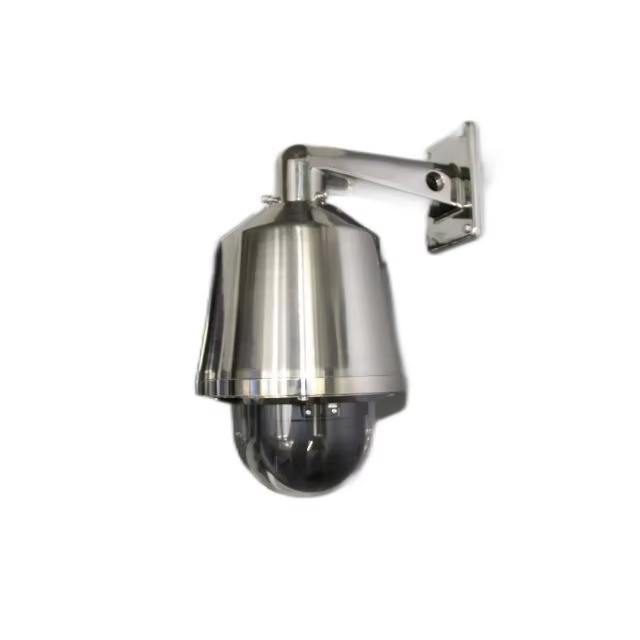

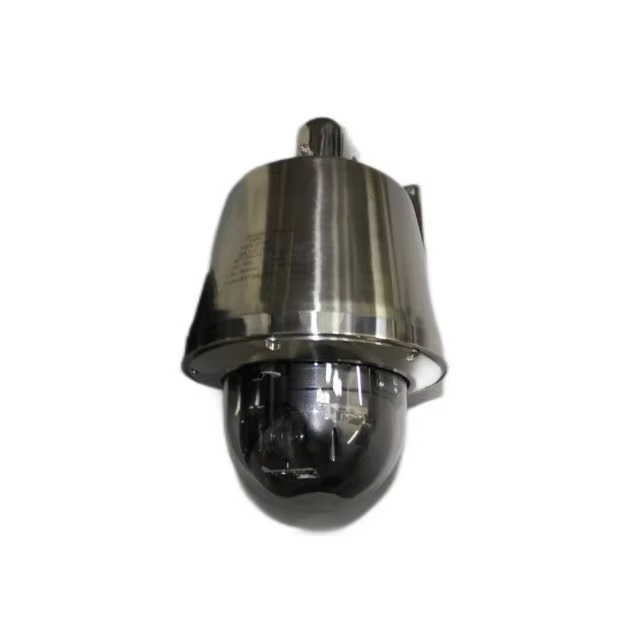

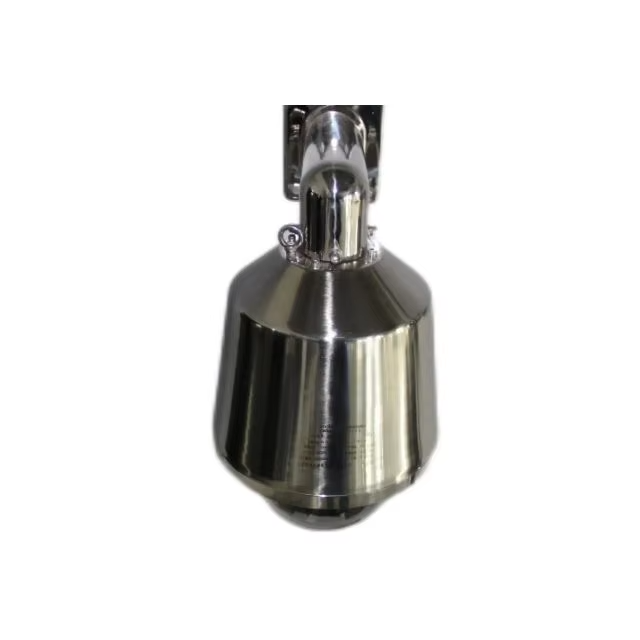

Explosion-proof Camera. Certified for hazardous areas, ensures safe and reliable, high-definition surveillance in volatile environments.
Product Parameters
Sensor Type
|
Product Model
|
FB-BFQ44
|
|
Explosion-proof mark
|
Ex db IIC T6 Gb/Ex tb IIC T80℃ Db
|
|
Protection Level
|
IP68
|
|
Image Sensor
|
1/2.8″ Progressive Scan CMOS
|
|
Effective Pixels
|
2MP 3MP 4MP 5MP 8MP
|
|
Focal Lens
|
4.5-148.5mm, 33x optical zoom
|
|
Zoom mode
|
Motorized zoom, automatic focus
|
|
Aperture
|
F1.5 (W)~F4.0 (T)
|
|
Shutter
|
Automatic/Manual, shutter range: 1~1/100, 000s
|
|
Minimum Illumination
|
Color: 0.001Lux@(F1.5, 50IRE, color); 0.0005Lux@(F1.5, 50IRE, black and white); 0Lux (IR lamp on)
|
|
Infrared Distance
|
≥100 meters
|
|
Day/Night Switch
|
Automatic infrared filter switching
|
|
Signal to Noise Ratio
|
>56dB
|
|
Wide Dynamic range
|
120dB
|
|
3D Noise Reduction
|
Support
|
|
Fog Penetration
|
Adaptive fog penetration
|
|
Encoding Protocol
|
H.265/H.264/MJPEG
|
|
Coding Format
|
2592×19@25fps, 2592×1944@20fps, 2688×1520@30fps, 2688×1520@25fps, 2560×1440@30fps, 2560×1440@25fps, 1920×1080@30fps,
1920×1080@25fps |
|
Main Stream
|
2592×1944, 2688×1520, 2560×1440, 1920×1080
|
|
Sub Stream
|
1920×1080, 1280×720, 720×576 (D1), 640X360
|
|
Third Stream
|
720×576 (D1), 640X360, 704×288 (2CIF), 352×288 (CIF)
|
|
Video Bitrate
|
128 Kbps~16 Mbps
|
|
Audio Encoding
|
G.711u, G.711A, AAC-LC
|
|
Audio Sampling Rate
|
G.711u, G.711A: 8KHz; AAC-LC: 8KHz/16KHz/48KHz
|
|
Perimeter Defense
|
Cross-boundary detection, regional invasion detection, area entry/exit, Support motor vehicle, non-motor vehicle, pedestrain
target classification, capture and prevention |
|
Face Detection
|
Up to 40 indivisual face target can be detected simultaneously; Support effect first, speed first, cycle preferred 3 face capture
preferred mode, support face angle filtering |
|
Common Events
|
Motion detection, occlusion detection, sound detection, alarm input/output
|
|
Network Protocol
|
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP
|
|
Compatibility
|
ONVIF Profile G, Profile T, Profile S, GB/T28181
|
|
Front-end Storage
|
Micro SD, up to 256GB
|
|
Rotation
|
Horizontal: 360° continuous rotation, Vertical: 0-90°
|
|
Rotation Speed
|
Horizontal rotation speed: 0.1-200°/s, vertical rotation speed: 0.1-120°/s
|
|
Preset Points
|
255
|
|
Cruise Scan
|
4 channels of preset position cruisig, one channel of track scanning, and one channel of line scanning between two points
|
|
Power-off Memory
|
Support
|
|
Audio Interface
|
1 In – 1 Out (optional)
|
|
Alarm Interface
|
1 In – 1 Out (optional)
|
|
Network Interface
|
Built-in RJ45 network port, which supports 10M/100M of network data
|
|
Temperature Range
|
-40℃~+60℃
|
|
Power Supply
|
AC85V~260V/DC 12V 3A (optional)
|
|
Material
|
304 Stainless steel
|
|
Inlet
|
1 G3/4″ Cable Inlet
|
|
Installation
|
Methods optional based on employ environment
|
|
Weight
|
≤14kg
|
Product Scenario：
Our accessories advantages - Why choose us
- 1 Our cameras boast true 4MP+4MP pixel count, utilizing epistar light panels and Lotus LEDs. Night vision is improved by 5–6× compared to competing products.
- 2 High-resolution sensor + proprietary image processing chip deliver clear, colorful images even in low-light or near-dark conditions, capturing about 40% more detail than standard products.
- 3 High-power Feiyang light panels (used by Hikvision & Dahua; supplier with 20+ years) offer longer lifespan and more stable brightness.
- 4 12W large-crystal solar panels ensure charging in low light for uninterrupted power. Many competitors use semi-plastic crystals that struggle in rainy weather.
- 5 We use brand-new batteries (not refurbished) for safety and stability: six 12,000 mAh cells vs others’ four 8,000 mAh. A critical component with only a small cost difference.
- 6 High-quality ABS housing ensures a 5–8 year lifespan and minimizes damage from weathering.
