Product Description:
Wifi Wireless EseeCloud App Nvr 4ch 4Mp Cctv Security Cameras Systems Audio Outdoor Ip Network PTZ Home Video Kit
Product Parameters：
|
lmage sensor
|
1/2.7″ 2.0M Pixel Progressive Scan CMOS
|
|
Lens
|
3.6mm
|
|
Infrared control mode
|
Infrared light mode; White light mode; Dual light control mode
|
|
Video compression format
|
H264 / H265
|
|
Video Frame rate
|
16fps
|
|
Audio input
|
Built in MIC
|
|
Audio output
|
Built-in power amplifier, can be directly connected to speakers
|
|
AGC
|
Auto/ Manual
|
|
P2P
|
support Tuya P2P
|
|

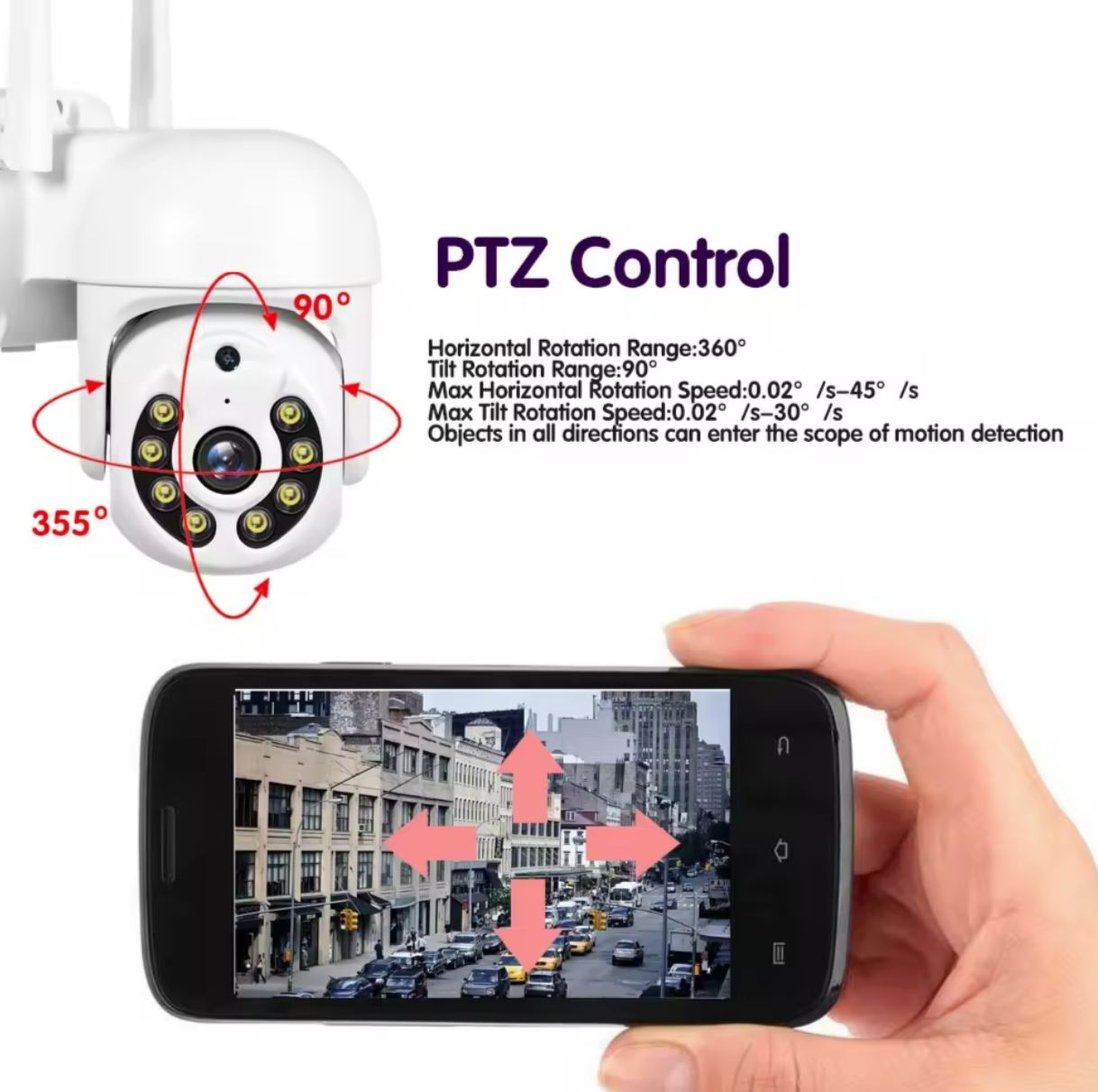

Rotation angle
|
Vertical 90°, horizontal 355°
|
|
Motion Detection
|
Support
|
|
AI humanoid detection
|
Support
|
|
Sound Alarm
|
Support
|
|
Alarm push
|
Mobile push
|
|
Storage
|
Maximum support 128G TF card storage
|
|
Video standard
|
HD/SD optional
|
|
Video mode
|
Manual recording, alarm recording
|
|
View video
|
Support remote video playback
|
|
AI
|
Human detection
|
|
wired
|
10/100M RJ45 Network Interface
|
|
WIFI
|
2.4G, IEEE802.11 b/g/n protocol, support WEP, WPA, WPA2 encryption
|
|
Working power consumption
|
≤2W
|
|
Power
|
12V 1A
|
|
Working Temperature
|
-10C~60°C, Humidity<90%RH(Unsupport-condensing]
|
|
HF-8024Q NVR Parameters
|
|
|
System
|
Main processor: Hi3536D
|
|
Operating System: Embedded Linux
|
|
|
Video
|
Video compression: H.265 High Profile/ H.264 Main Profile
|
|
Video output: 720P60,XGA,1080P60, 3MP60
|
|
|
Video input(IP): 4*3MP/8*3MP
|
|
|
Audio
|
Audio compression: G.711
|
|
Intercom: None
|
|
|
Record & playback
|
Recording mode: ManuaV/Alarm/Video Detection/Continuous
|
|
Local Playback: 1*1080P
|
|
|
Storage & Backup
|
Record Storage: network
|
|
Backup mode: Network backup, USB hard disk
|
|
|
Network Control
|
Protocol: TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIFSADP,P2P
|
|
Wireless
|
Frequency: 2.4G
|
|
Antenna Structure: 2×2MIMO
|
|
|
Distance: More than 800 meters with no obstacle,more than 30meters if penetrate the wall, the actual transmissiondistance according to the situation
|
|
|
lnterface
|
Video output: 1ch HDMI, 1ch VGA output
|
|
Audio I/O: None
|
|
|
Alarm l/O: None
|
|
|
Network interface: 1*RJ4510M/100M Adaptive Ethernet port
|
|
|
USB: 2*USB 2.0 port
|
|
|
Hard disk: 1 SATA(Up to 4TB]
|
|
|
Other
|
Power supply: DC 12V/2A
|
|
Power Consumption: 5W (Without HDD)
|
|
|
Work environment: Temperature:-10℃-+55℃, Humidity:10%-90%RH
|
Product Usage Scenarios：
CCTV Camera Application Scenarios
Real installation environments to help you pick the right solution.
Office Buildings
Secure entrances, lobbies, corridors, and elevators. Smart AI recognizes humans/vehicles to reduce false alarms.
Warehouses & Factories
Monitor goods, loading areas and aisles; robust design and full-color low-light imaging improve incident capture.
High-Risk Areas
Remote surveillance for energy plants and chemical sites; reliable power with 12W crystalline solar and safer battery packs.
Construction Sites
Quick deployment, monitor gates, cranes and materials; support mobile hotspots and AP mode when no wiring is available.
Schools & Hospitals
Protect students, patients and staff; AI filters invalid alerts and speeds up response to real events.
Home Security
Monitor entrances, gardens and parking areas; full-color night vision and two-way talk keep families safer.
Our accessories advantages - Why choose us
- 1 Our cameras boast true 4MP+4MP pixel count, utilizing epistar light panels and Lotus LEDs. Night vision is improved by 5–6× compared to competing products.
- 2 High-resolution sensor + proprietary image processing chip deliver clear, colorful images even in low-light or near-dark conditions, capturing about 40% more detail than standard products.
- 3 High-power Feiyang light panels (used by Hikvision & Dahua; supplier with 20+ years) offer longer lifespan and more stable brightness.
- 4 12W large-crystal solar panels ensure charging in low light for uninterrupted power. Many competitors use semi-plastic crystals that struggle in rainy weather.
- 5 We use brand-new batteries (not refurbished) for safety and stability: six 12,000 mAh cells vs others’ four 8,000 mAh. A critical component with only a small cost difference.
- 6 High-quality ABS housing ensures a 5–8 year lifespan and minimizes damage from weathering.
Over 12 Years of Manufacturing Experience
HIKIWIFI has over a decade of experience in the security camera industry, providing consistent quality and performance to customers in over 50 countries.
OEM/ODM Customization Experts
We specialize in flexible OEM and ODM solutions to meet your market needs—from branding and packaging to software integration and collagen customization.
3,000 Square Meter Self-Owned Factory
Our modern production facilities ensure stable production, fast delivery times, and strict quality control for every order.
Ultimate Service Experience
Fast Delivery and Sample Support We offer 36-hour fast sampling and 72-hour bulk delivery for popular models, helping you gain a market advantage over the competition.
Dedicated Service Team
Over 100 employees, including over 30 QA and after-sales engineers, ensure 24/7 support, technical guidance, and responsive communication throughout your relationship.
All Products
A complete product line ranging from 4G solar-powered infrared cameras to PTZ WiFi, IP networking, explosion-proof, and intelligent AI models —Providing solutions for crowd-intensive scenarios and coordination
